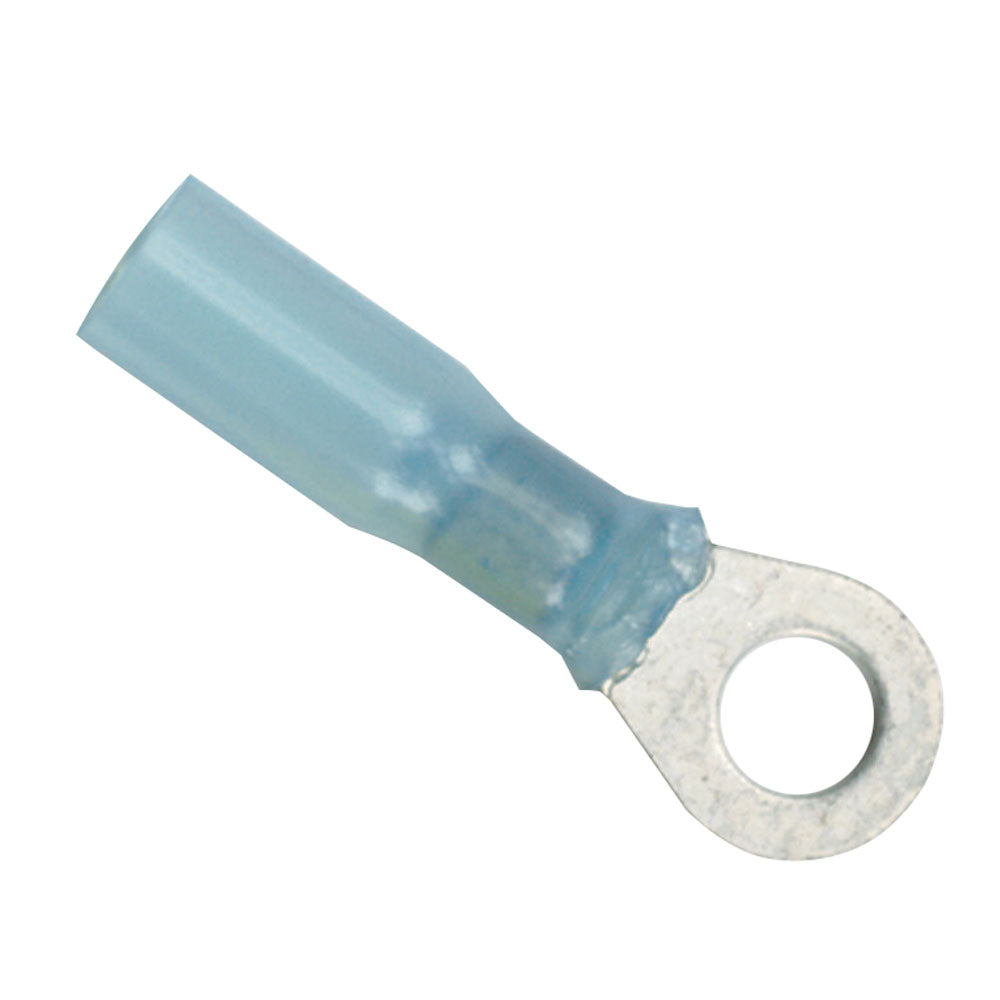

Ancor 16-14 Gauge - #8 Heat Shrink Ring Terminal - 3-Pack [311203]

16-14 Gauge #8 Heat Shrink Ring Terminal 3-Pack

Gauge Size: 16-14
Screw Size: #8
Quantity: 3

Product Features:
These heat shrink ring terminals are top - notch. The cross - linked polyolefin tubing is stronger than PVC and won't burn. The heat - activated adhesive lining seals out salt water, oil, acids, and sunlight, and provides strain relief. With a nylon insulator, it's perfect for marine use, resistant to sunlight, water, oil, chemicals, vibration, and cut - through damage. It's UL Listed and CSA Recognized. It has a high shrink ratio, shrinking to 1/3 of its original size at 257°F/125°C. The operating temperature range is from 40°C to 110°C. The ANCOR connectors have built - in heat - activated adhesive. They shrink to form a watertight seal, reducing vibration and strain. Tinned for corrosion resistance, made of pure copper for maximum current flow, and has a brazed seam for strength. Wire Range: 16 - 14 (1 - 2 mm).
WARNING: This product can expose you to chemicals including di(2 - ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Gauge: 16 - 14 AWG
• Post Size: #8
• Package Qty: 3
• Heat Shrink: Yes
• Type: Ring Terminals
• Box Dimensions: 1'H x 1'W x 1'L WT: 0.1 lbs
• UPC: 091887313024

Quick Guide (pdf)

Using these Ancor heat shrink ring terminals is easy. First, select the right wire within the 16 - 14 gauge range. Slide the terminal onto the wire. Then, use a heat source like a heat gun. Apply heat until the terminal shrinks to form a tight seal, which usually happens at 257°F/125°C. As it shrinks, the heat - activated adhesive will also seal the connection. When using, be aware of the warning. This product contains chemicals that can be harmful, so make sure to work in a well - ventilated area. For maintenance, store the terminals in a dry place. Avoid exposing them to extreme temperatures outside the 40°C to 110°C operating range. Also, check the terminals periodically for any signs of corrosion or damage, especially if used in a marine environment.
